Using framer motion in Next 13 to create a responsive animated header

2023-02-21

Technologies: NextJS, FramerMotion, TailwindCSS, Front-end design

Topics: NextJS, Animation, Framer motion, Responsive design, Tailwind CSS

Summary: Combining tailwind CSS and framer motion to design a responsive header with animations for NextJS site

Medium: https://medium.com/@chanakap845/using-framer-motion-in-next-13-to-create-a-responsive-animated-header-9409b1f7cc5e

Overview

Framer motion is a production ready motion library for React. It is important to note that framer motion requires React 18 or greater which is already fulfilled by Next 13 but if you want to use another framework or library it is good to keep that in mind. In this post I wanted to use Framer motion and tailwind to create a responsive header with animations to boot in a Next 13 app.

...

Set Up

Create a new Next 13 project, which at the time of writing was 13.1.6. When creating a new Next 13 project you will be asked whether you want to opt in to the experimental ‘app’ directory to which I gave yes but feel free to use the pages directory if you feel more comfortable.

Terminal

npx create-next-app@latest my-project --typescript --eslint

I will be using tailwind to make life a bit easier but feel free to use CSS or SCSS modules as you please. Please follow these instructions to configure and install tailwind on your local project:

Tailwind configuration guide

Install framer motion as a dependency:

Terminal

npm install framer-motion

Run the development server. Next 13 supports fast refresh by default, Therefore we will be able to view any changes to our code on the development server at http://localhost:3000/ (might be different if port is occupied, look at your terminal output).

Terminal

npm run dev

At this point, I like to clean up the app directory by deleting all the default code in global.css, page.module.css and the auto generated JSX in page.tsx. In Next 13, page.tsx is the default home page which is conventionally different from index.tsx or index.js and will be the page that we will be routed to when we start our development server.

./app/page.tsx

// This is what page.tsx should look like. I kept the default font
// but feel free to delete or change it.
import { Inter } from '@next/font/google'
const inter = Inter({ subsets: ['latin'] })
export default function Home() {
  return (
    <main>
      Hello World!
    </main>
  )
}
...

Creating the header component

Let’s start by creating a header component and adding it to our layout. The layout.tsx file that is generated in our app directory will be used as the default layout by all pages in our application, unless configured otherwise.

./components/header.tsx

const Header = () => {
 // These will be the tabs that we will try to generate
 const links = ['Home', 'Pokemon', 'About'];

 return (
  // Styling: Fixed size with 15% height and 100% width and background color
  // of blue
  <header className='fixed h-[15%] w-[100%] bg-blue-600'>
   My header
  </header>
 )
};

export default Header;

We can then add it to our layout which will be shared by all pages that we create:

./app/layout.tsx

// layout.tsx
import Header from '@/components/Header'
import './globals.css'

export default function RootLayout({
  children,
}: {
  children: React.ReactNode
}) {
  return (
    <html lang="en">
      <head />
      <Header></Header>
      <body>{children}</body>
    </html>
  )
}

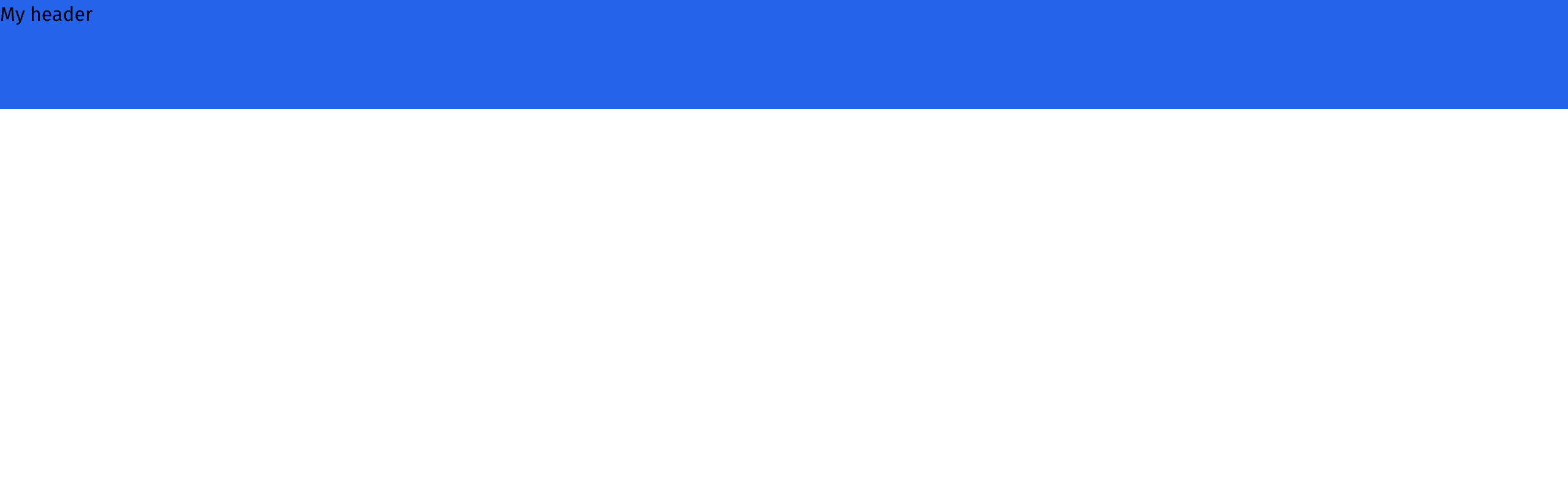

At this point if all goes according to plan you should see this on your screen: step-1

At this point, lets update the code in our header component to render a few tabs and a basic block logo that we can animate using framer motion:

./components/header.tsx

const Header = () => {
 // Lets add a few tabs here to which we'll add routing later
 const links = ['Home', 'Products', 'About'];

 // Tailwind styling
 const headerStyling = "fixed h-[120px] w-[100%] bg-blue-600 flex";
 const logoDivStyling = "flex-1 flex items-center pl-[20px]";
 const tabDivStyling = "flex-1 flex-row flex space-x-[40px] mt-[70px] justify-end mr-[20px]";
 const desktopTabStyling = "bg-black h-[25px] w-[100px] rounded-sm text-center text-white";
 const logoStyling = "w-[50px] h-[50px] bg-black"

 // Render menu tabs
 const renderMenuTabs = () => {
  return(
  <>
   {links.map((link) => (
      <div className={desktopTabStyling} key={link}>
       {link}
      </div>
   ))}
  </>
  )
 }
 // Render our header
 return (
  <header className={headerStyling}>
   <div className={logoDivStyling}>
    <div className={logoStyling}></div>
   </div>
   <div className={tabDivStyling}>
    {renderMenuTabs()}
   </div>
  </header>
 )
};

export default Header;

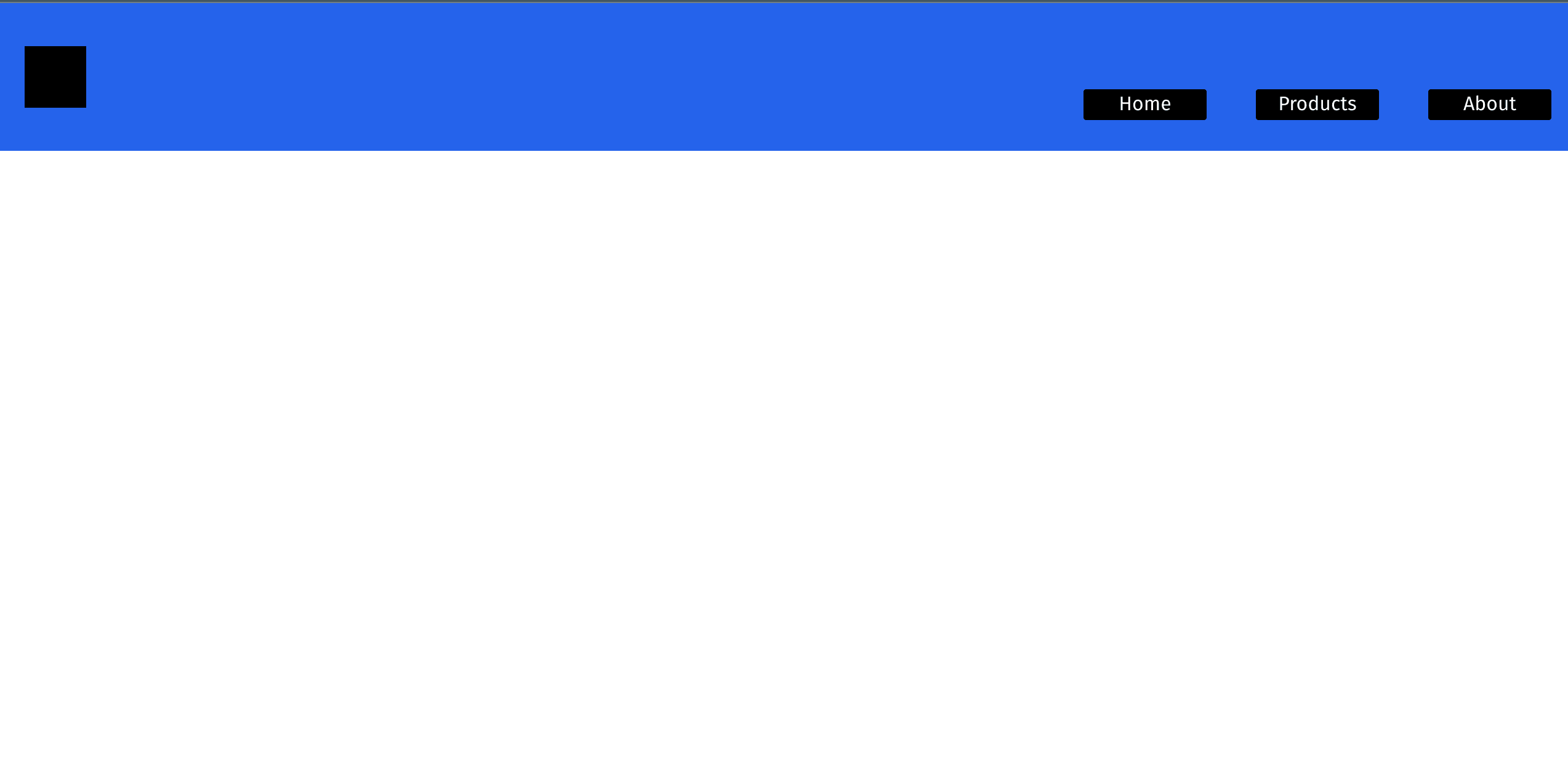

We should now see the following on our development server: step-2

...

Animating the header component

At this point, lets now move on to integrating framer motion. Lets start by animating the tabs on our menu so that they expand when we hover over them.

The motion.div is the core component of the framer motion library. It can take different types of props. In our case we want to animate based on a reaction to a gesture which is hovering.

To implement this functionality, the motion component has a whileHover prop that we can pass an object to. This object will animate our HTML element based on the passed arguments. It also accepts a transition prop where we can define the duration of our animation.

Since we are now using framer motion in our header component, We also need to add the ‘use client’ directive as it uses the useContext() hook. This tells NextJS to render the header component as a client side component. (By default all components in the app directory are rendered as server side components.)

Framer motion is compatible with server side components by passing initial=false as a prop but it will not work with scale which we will be using in our application.

./components/header.tsx

"use client";

import { motion } from "framer-motion";

const Header = () => {
  const links = ["Home", "Products", "About"];

  // Tailwind styling
  const headerStyling = "fixed h-[120px] w-[100%] bg-blue-600 flex";
  const logoDivStyling = "flex-1 flex items-center pl-[20px]";
  const tabDivStyling =
    "flex-1 flex-row flex space-x-[40px] mt-[70px] justify-end mr-[20px]";
  const desktopTabStyling =
    "bg-black h-[25px] w-[100px] rounded-sm text-center text-white hover:cursor-pointer";
  const logoStyling = "w-[50px] h-[50px] bg-black";
  // Render menu tabs
  const renderMenuTabs = () => {
    return (
      <>
        {links.map((link) => (
          // Create an animated div that expands on hover
          <motion.div
            whileHover={{ scale: 1.2, opacity: 0.8 }}
            transition={{ duration: 0.5 }}
            className={desktopTabStyling}
            key={link}
          >
            {link}
          </motion.div>
        ))}
      </>
    );
  };

  return (
    <header className={headerStyling}>
      <div className={logoDivStyling}>
        <div className={logoStyling}></div>
      </div>
      <div className={tabDivStyling}>{renderMenuTabs()}</div>
    </header>
  );
};

export default Header;

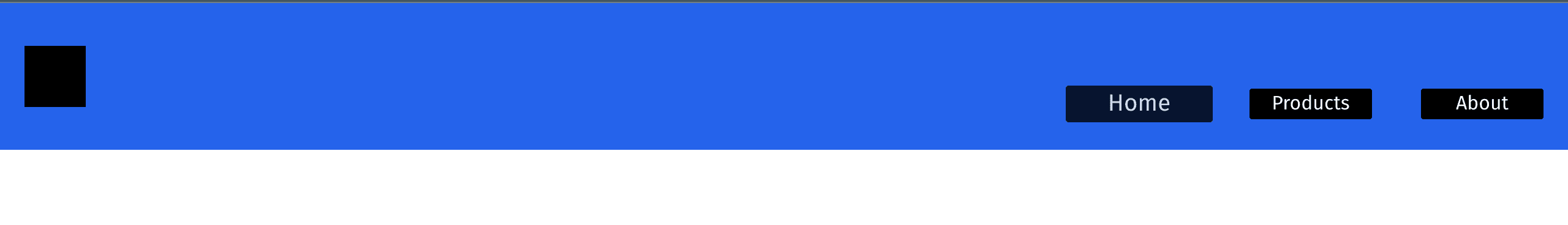

step-3

Let’s now animate our logo in an infinite loop. To do this we can make use of key frames. Rather than passing an object of keys with a single value of what we want to change, We can pass a dictionary of keys with an array of values that we want to animate. We can also use the transition prop to indicate to react that we want to loop through the animations endlessly.

Lets update the logo div as below:

./components/header.tsx

return (
    <header className={headerStyling}>
      <div className={logoDivStyling}>
        <motion.div
          animate={{
            scale: [1, 1.2, 1.2, 1, 1],
            rotate: [0, 0, 270, 270, 0],
            borderRadius: ["20%", "20%", "50%", "50%", "20%"],
          }}
     transition={{ repeat: Infinity, duration: 2 }}
          className={logoStyling}
        ></motion.div>
      </div>
      <div className={tabDivStyling}>{renderMenuTabs()}</div>
    </header>
  );

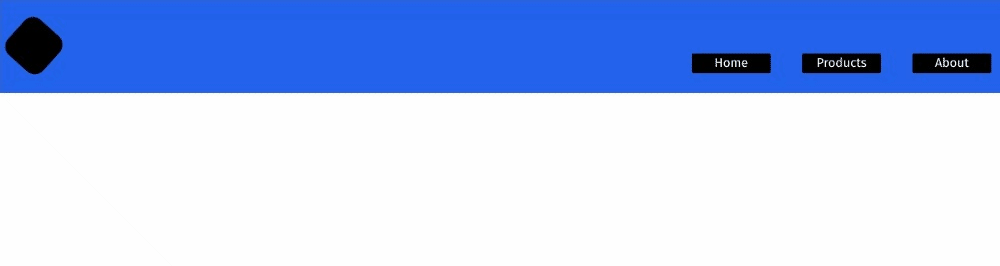

We should now see our logo being animated: step-4

...

Making the design responsive

Finally, lets make our header component responsive on smaller screens. Lets do so by rendering our menu as an hamburger menu on smaller screens.

To create a responsive menu, we will be updating our header component to use a hamburger menu with an animated sidebar that pops into the screen from the right.

To create the SVG for the hamburger menu and close icon, I have shamelessly borrowed the code from the examples in the Framer motion docs.

The following code represents the SVG component that we will be using for our hamburger menu. Variants are a feature provided by Framer that allows us to define states and switch between them based on the parent. Since we will be using this component within our header component which will be its’ parent element it will determine whether it’s in a closed or open state and the SVG will take the form of a hamburger menu or close icon based on the that state.

./components/MenuToggle.tsx

import { motion } from "framer-motion";

const Path = (props: any) => (
  <motion.path
    fill="transparent"
    strokeWidth="3"
    stroke="hsl(0, 0%, 18%)"
    strokeLinecap="round"
    {...props}
  />
);

const MenuToggle: React.FC<{ toggle: () => void }> = (props) => {
  const buttonStyling: string = "bg-white rounded-full p-4";
  return (
    <button onClick={props.toggle} className={buttonStyling}>
      <svg width="23" height="23" viewBox="0 0 23 23">
        <Path
          variants={{
            closed: { d: "M 2 2.5 L 20 2.5" },
            open: { d: "M 3 16.5 L 17 2.5" },
          }}
        />
        <Path
          d="M 2 9.423 L 20 9.423"
          variants={{
            closed: { opacity: 1 },
            open: { opacity: 0 },
          }}
          transition={{ duration: 0.1 }}
        />
        <Path
          variants={{
            closed: { d: "M 2 16.346 L 20 16.346" },
            open: { d: "M 3 2.5 L 17 16.346" },
          }}
        />
      </svg>
    </button>
  );
}

export default MenuToggle;

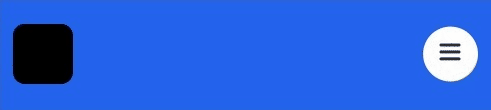

step-5

To get the functionality above, we need to pass in state as well as be able to animate our sidebar. To do so we can wrap the JSX returned by the header component in a motion.div where it will determine the state of “open” and “closed”.

./components/Header.tsx

// Hook provided by framer similar to useState that allows us to toggle between
// states. We pass this to our SVG button to toggle the state and propagate the animation.
const [isOpen, toggleOpen] = useCycle(false, true);
// Parent element which is false at the beginning and determines whether or not
// to animate based on the isOpen variable
<motion.div initial={false} animate={isOpen ? "open" : "closed"}>

In addition, we also need to render the link tabs on our sidebar as a column rather than a single row in desktop mode. We can add separate tailwind styling and update our render function to create this functionality.

For our side bar, We need to animate it so that it pops out from the right of our screen. We can style it then translate it’s position using framer. Since the link tabs will children of the sidebar, we want to delay their animations till we finished animating the sidebar. We can also make use of the stagger children property in transition:

./components/Header.tsx

const sideBarStyling =
    "fixed w-[30%] ml-[70%] h-[100vh] mt-[120px] flex flex-col items-center space-y-[20px] pt-4 bg-blue-300 md:hidden";

  // Variants for sidebar
  const sidebar = {
    open: {
      x: '0%',
      transition: {
        // Type of animation
        type: "spring",
        stiffness: 200,
        // Will reduce bounce and make it smoother
        damping: 40,
        // Will make it so that the tabs are animated from top to bottom
        staggerChildren: 0.07,
        // Animate children once sidebar has been loaded
        delayChildren: 0.15
      },
    },
    closed: {
      x: '100%',
      transition: {
        delay: 0.5,
        type: "spring",
        stiffness: 400,
        damping: 40,
        staggerChildren: 0.05,
        staggerDirection: -1,
        bounce:  0
      },
    },
  };

Our header component will now look like:

./components/Header.tsx

"use client";

import { motion, useCycle } from "framer-motion";
import MenuToggle from "./MobileMenu";

const Header = () => {
  const links = ["Home", "Products", "About"];
  const [isOpen, toggleOpen] = useCycle(false, true);

  // Tailwind styling
  const headerStyling = "fixed h-[120px] w-[100%] bg-blue-600 flex";
  const logoDivStyling = "flex-1 flex items-center pl-[20px]";
  const tabDivStyling =
    "hidden md:flex flex-1 flex-row flex space-x-[40px] mt-[70px] justify-end mr-[20px]";
  const mobileTabDivStyling =
    "flex sm:flex-1 justify-end mr-[20px] items-center md:hidden";
  const desktopTabStyling =
    "bg-black h-[25px] w-[100px] rounded-sm text-center text-white hover:cursor-pointer";
  const mobileTabStyling =
    "bg-black h-[25px] w-[80%] rounded-sm text-white hover:cursor-pointer z-100 pl-2";
  const logoStyling = "w-[50px] h-[50px] bg-black";
  const sideBarStyling =
    "fixed w-[30%] ml-[70%] h-[100vh] mt-[120px] flex flex-col items-center space-y-[20px] pt-4 bg-blue-300 md:hidden";

  // Variants for sidebar
  const sidebar = {
    open: {
      x: '0%',
      transition: {
        type: "spring",
        stiffness: 200,
        damping: 40,
        staggerChildren: 0.07,
        delayChildren: 0.15
      },
    },
    closed: {
      x: '100%',
      transition: {
        delay: 0.5,
        type: "spring",
        stiffness: 400,
        damping: 40,
        staggerChildren: 0.05,
        staggerDirection: -1,
        bounce:  0
      },
    },
  };

  // Variants for mobile tabs
  const mobileTabVariants = {
    open: {
      y: 0,
      opacity: 1,
      transition: {
        y: { stiffness: 1000, velocity: -100 },
      },
    },
    closed: {
      y: 50,
      opacity: 0,
      transition: {
        y: { stiffness: 1000 },
      },
    },
  };

  // Render menu tabs
  const renderMenuTabs = (useMobileStyling: boolean) => {
    return (
      <>
        {links.map((link) => (
          <motion.div
            whileHover={{ scale: 1.2, opacity: 0.8 }}
            whileTap={{ scale: 0.8, opacity: 0.8 }}
            transition={{ duration: 0.15 }}
            className={useMobileStyling ? mobileTabStyling : desktopTabStyling}
            variants={useMobileStyling ? mobileTabVariants : {}}
            key={link}
          >
            {link}
          </motion.div>
        ))}
      </>
    );
  };

  // Render sidebar
  const renderSideBar = () => {
    return (
      <motion.div variants={sidebar} className={sideBarStyling}>
        {renderMenuTabs(true)}
      </motion.div>
    );
  };

  return (
    <motion.div initial={false} animate={isOpen ? "open" : "closed"}>
      <header className={headerStyling}>
        <div className={logoDivStyling}>
          <motion.div
            animate={{
              scale: [1, 1.2, 1.2, 1, 1],
              rotate: [0, 0, 270, 270, 0],
              borderRadius: ["20%", "20%", "50%", "50%", "20%"],
            }}
            transition={{ repeat: Infinity, duration: 2 }}
            className={logoStyling}
          ></motion.div>
        </div>
        <div className={tabDivStyling}>{renderMenuTabs(false)}</div>
        <motion.div
          initial={false}
          animate={isOpen ? "open" : "closed"}
          className={mobileTabDivStyling}
        >
          <MenuToggle toggle={() => toggleOpen()} />
        </motion.div>
      </header>
      {renderSideBar()}
    </motion.div>
  );
};

export default Header;

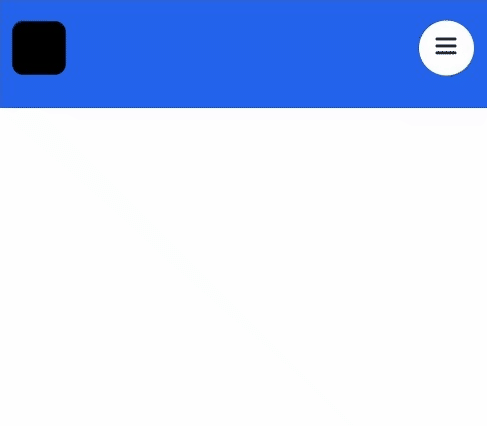

We should now have a full animated sidebar: step-6

...

Next steps:

Change the div tabs to Link elements and add navigation functionality. (To create a route in Next 13’s app folder, you simply need to create a folder with a page.tsx file. For example, to create a products page you can create a folder in the app directory called products and add a page.tsx file inside of it. We can then use a Link element in Next 13 for routing.)

Next 13 Docs

./components/Header.tsx

<Link href="/products" />

Learn more about framer motion directly from the docs. The examples is a great place to start:

Framer motion examples

A completed version of the code has been uploaded to my github.
